Harrier Mini

QRO’s AI-powered all-in-one 5MP ANPR Camera System for Mobile and Fixed Roadside Applications.

View Data Sheet

Redefine Road Safety

In a world where data-driven decisions reign supreme, your traffic management and surveillance infrastructure cannot afford to lag.

QRO Solutions have launched a new, highly compact, all-in-one, super high-definition camera with an embedded high-performance AI processor delivering a complete fully integrated ANPR solution to monitor up to 3 lanes of traffic.

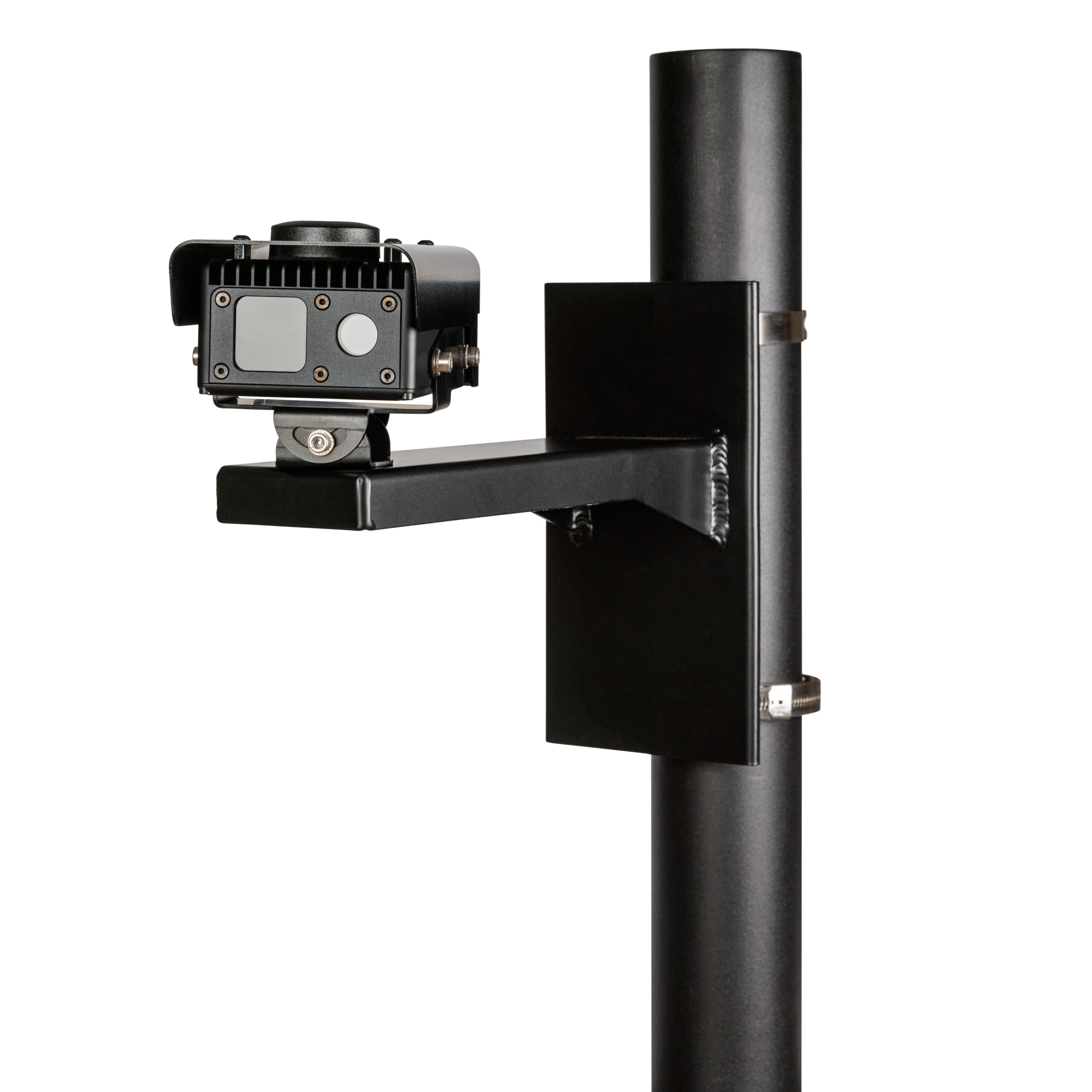

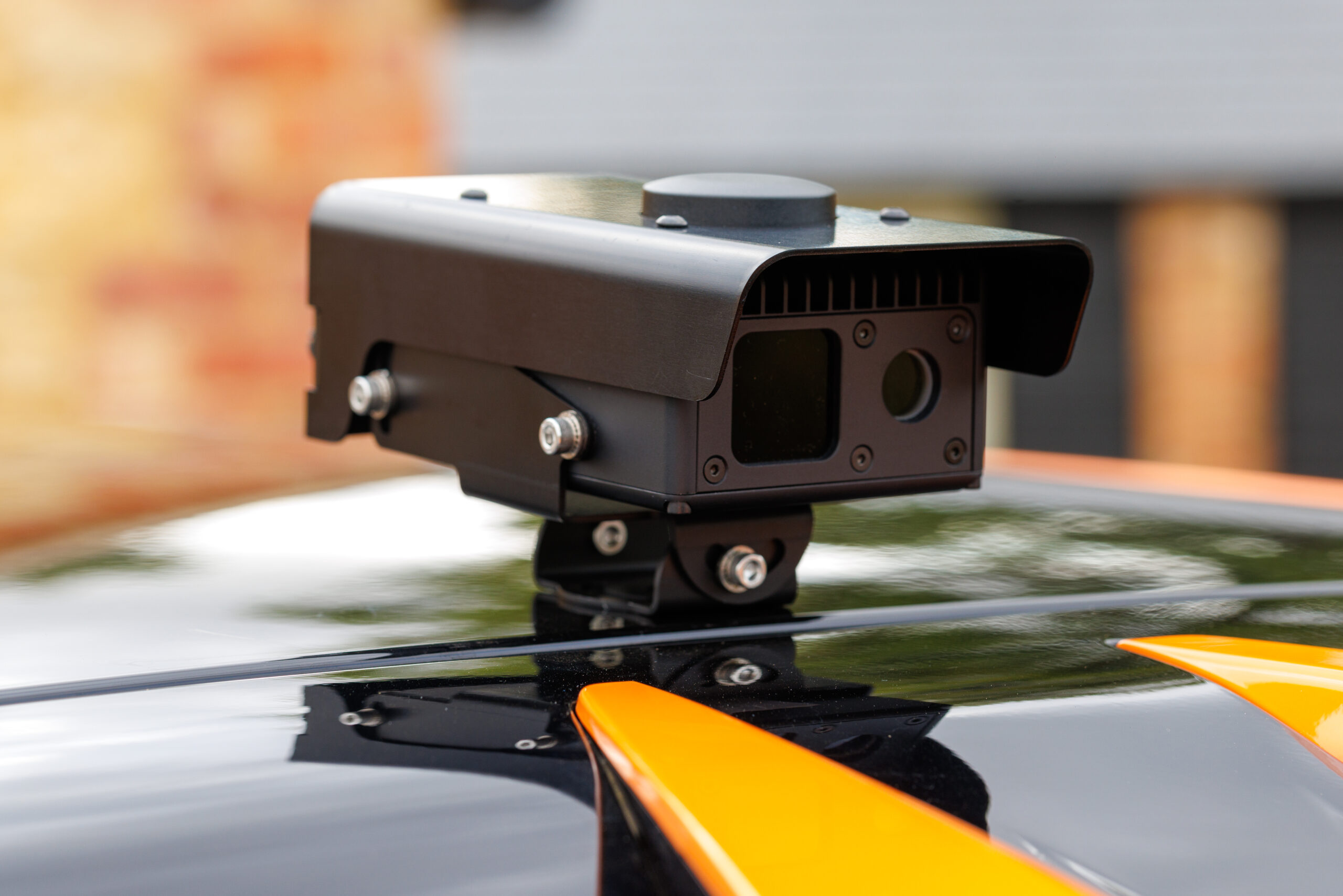

Having built-in wireless communications and requiring only a single 12Vdc power connection, the Harrier Mini is simple to deploy both in vehicle based and fixed infrastructure applications. Due to its small size, it fits neatly on the top of traffic signals, looking less like an ANPR camera and more like a traffic sensor.

Highlights:

  • Self-contained ANPR and data communication system.
  • 5-megapixel fixed focus day/night lens (12 to 25mm options).
  • 9 x 850nm wavelength high-power LEDs.
  • Capable of 3 lanes of simultaneous coverage.
  • Vehicle detection algorithm to monitor vehicle capture rates.
  • LTE/GPS/WLAN/LAN built in router.
  • Externally accessible SIM card holder.
  • 12Vdc powered with ignition power control.
  • Built in UK police NASP testing tool.
  • Simultaneous ANPR and High-Definition video streaming.
  • Supports NASP testing.

Key Features

Pioneering Applications and Features

ANPR/ALPR Technology

Situated at the heart of Harrier Mini is its cutting-edge ANPR/ALPR technology. Specialised algorithms excel in licence plate recognition and vehicle identification regardless of weather conditions and light levels, offering unrivalled accuracy, efficiency and intelligence.

Vehicle Make, Model & Colour Detection

With AI-enabled road safety, Harrier Mini brings vehicle make and model detection to an entirely new level of precision, invaluable for criminal investigations and traffic studies alike.

Pedestrian and Cycle Path Monitoring

Capable of pedestrian and cycle path monitoring with integrator AI software, Harrier Mini safeguards pedestrian walkways and cycle paths by instantly detecting any unauthorised vehicles or obstructions, intelligently prompting immediate action.

Traffic Flow Analysis

Powered by embedded ANPR software and a suitable Back Office System, data-driven traffic patterns can be delivered providing insights into real-time traffic congestion to road network management teams.

Stopped Vehicle Detection

With ported AI algorithms, automated stopped vehicle detection enhances safety protocols by pinpointing stopped or stranded vehicles, facilitating a rapid emergency response.

Parking Management

Elevate the parking experience with AI-powered parking management. Harrier Mini can support the identification of empty car park spaces through AI image processing, streamlining for all drivers and ensuring optimal utilisation of space.

Mobile Phone and Seatbelt Use Identification

Through advanced seatbelt and mobile use detection algorithms, Harrier Mini could be used to encourage compliance in research and legal settings.

Vehicle Speed from Frame Analysis

Speed management is made extraordinarily precise with Harrier Mini’s capabilities in vehicle speed detection through meticulous frame-by-frame analysis, a pivotal feature for effective speed limit enforcement and traffic studies alike.

Superior Technical Specifications

Harrier Mini is designed, specified and built to a world-leading standard, including:

Communications

  • Internal All-in-one Router: LTE CAT4, HSPA/UMTS, EDGE/GPRS.
  • 1 x 10/100M ethernet (LAN/WAN configurable).
  • IEEE 802.11 b/g/n 300 Mbps(2T2R) WLAN.
  • NMEA-0183 2.3V GPS with an accuracy of 2.5m.

Conformity

  • UKCA, CE, FCC.

Dimensions

  • Main Body: 130mm(L) x 90mm(W) x 55mm(H).
  • Hood: 190mm(L) x 99mm(W) x 63 mm(H).

Environmental

  • Ingress Rating: IP67.
  • Operating Temperature Range: -20 °C to +55 °C.
  • Humidity: 0% to 98%.
  • Emissions: EN 55022:2010 EMC.
  • Immunity: EN 55024:2010 EMC.

Illumination

  • LEDs: 9 x 850nm Wavelength High-Power.
  • Beamwidth: 20°.

Imaging

  • Resolution: 2472 x 2064.
  • Sensor: Global Shutter Day/Night Sony Pregius S Colour.
  • Max FPS: 20 @ 5MP.
  • Day/Night Switch: Automatic switch based upon environment brightness and number plate contrast ratio.
  • Lens: Fixed focus with 12mm, 16mm, 20mm and 25mm options.
  • ANPR Range: Up to 40m with 3 standard lane coverage.

Material

  • Machined aluminium with black anodised finish.

Power

  • 12Vdc with external voltage stabiliser for vehicle installations.

Processing

  • Main Processor: Nvidia Jetson Nano 8GB
  • Storage: 128GB industrial M.2 SSD storage.

Software

  • Operating System: Ubuntu Linux.
  • ANPR Protocols: UTMC, UK BOF2 (All back-office variants).
  • Supports NASP testing.

Weight

  • 990g (including hood and 3-axis mounting bracket).

The Intelligence Behind Harrier Mini

Armed with a Nvidia Jetson AI processor, Harrier Mini delivers real-time analytics and ALPR/ANPR software-enabled data processing. Powered by machine learning algorithms, Harrier Mini is both adaptive and responsive to ever-changing road conditions.

Future-proof your infrastructure with Harrier Mini and embrace the next wave of smart city traffic management and IoT traffic monitoring by integrating Harrier Mini into your operations. This is not merely an advancement; it’s a revolution in AI Traffic Control Systems.

QRO Solutions Harrier Mini – Advancing Intelligence for a safer, smarter road ahead.
